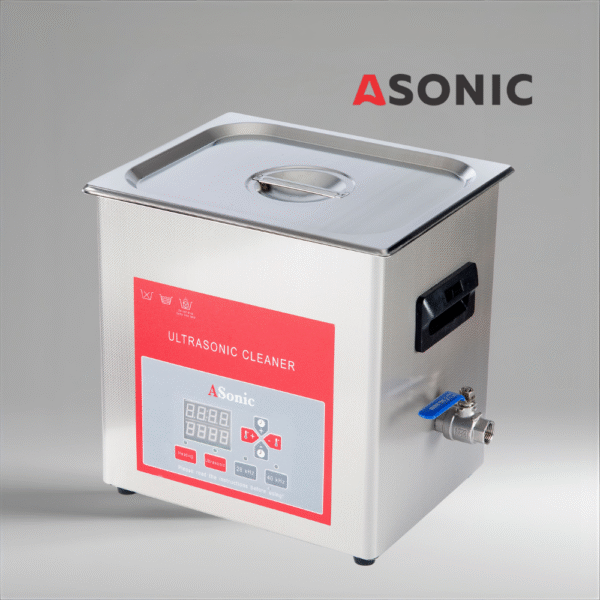

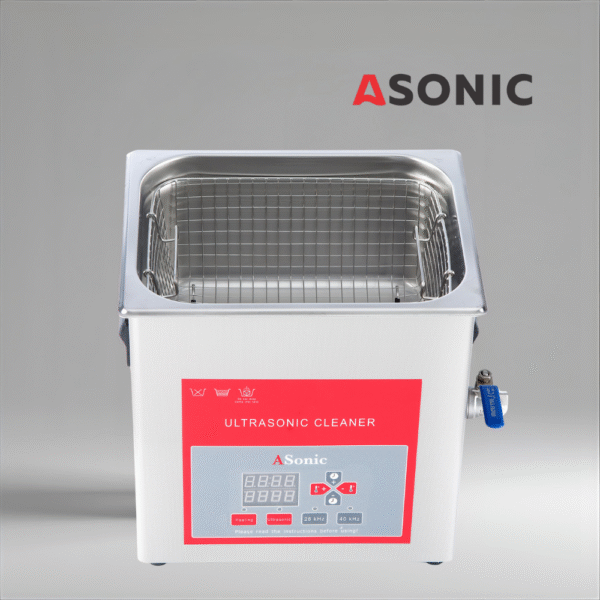

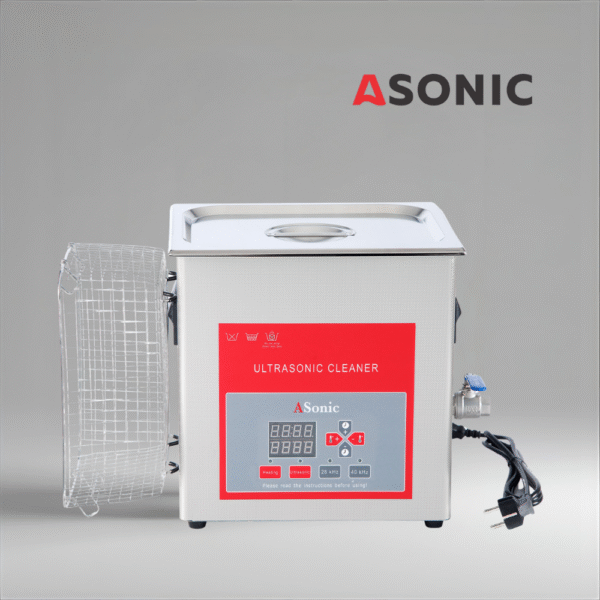

PRO-100DF

Professional ultrasonic cleaner with capacity of 9 liters, ideal for cleaning large industrial items and frequent use. With its ultrasonic frequency of 28 kHz and 40 kHz and the power of 240 W provides thorough and fast cleaning.





EAN: 0618056729846

1.334,42

Professional ultrasonic cleaner

PRO-100DF – with dual frequency 28 and 40 kHz

Capacity – 9 liters, thorough cleaning for professional users



This PRO model offers dual frequency – 28 kHz and 40 kHz. For everyone who requires strong and gentle cleaning and need to switch between two of them. Used especially for bigger massive blocks and delicate items with a lot of crevices, but also various different items. Examples are industrial blocks, PCBs, printer heads, motherboards, firefighting equipment,…

Separate adjustment of timer, from 1 to 99 minutes, auto switch off and temperature setting of up to 80°C. The big advantage of this model is, that you can choose 28 kHz and 40 kHz frequency for cleaning.

Ultrasonic frequency of 28kHz provides thorough and strong cleaning which is optimal for large flat surfaces and 40 kHz provides gentler and more precise cleaning.

Ultrasonic power of 240 W provides strong enough bubbles for thorough and fast cleaning of various number of items in the ultrasonic cleaner.



Application examples

Cleaning Auto – moto parts, industry equipment, cleaning cast, iron blocks used for injection molding, stainless steel plates…



ultrasonic cleaner ultrasonic cleaner ultrasonic cleaner

ADDITIONAL INFORMATION

Our PRO 100-300 models have stainless steel (SUS 304) tanks, which are 1 mm thick and therefore they provide for long lifetime of the ultrasonic cleaners. Seamless tank and housing prevents water leakage.

Transducers are attached to the bottom of the tank by a combination of screwing on welded threads and gluing, thus creating a homogeneous whole with the tank. This technology allows for continuous cavitation and a long life of ultrasonic cleaner.

Cleaners are equipped with industrial transducers with max. power of 60 W and frequency 28 kHz and 40 kHz, which ensure strong power of ultrasonic effect. Ultrasonic transducers are activated by driver inside the unit which enables cleaners to work with stable ultrasonic effect and run safely.

Electronics for ultrasonic cleaners PRO 20-300 have been developed for the optimal operation of transducers, heating plates and easy operation of a wide range of users in mind.

Warnings:

  • Use of ultrasonic cleaner without liquid is prohibited. It is dangerous and will damage the unit.
  • When heating liquid always turn on ultrasound, so temperature of the liquid is evenly distributed.
  • Actual volume of the tank might be less than 9 L.
  • Pour liquid 2 cm below the brim with items inside.
  • Do not throw objects in the tank or hit the device.
  • Cleaning items should be put in cleaning basket to protect ultrasonic machine.
  • The ultrasonic cleaner is intended for maximum daily use of 240 minutes
  • Ultrasound operation releases a certain amount of energy that heats the liquid in the tank.
Included in the package:
  • Ultrasonic cleaner

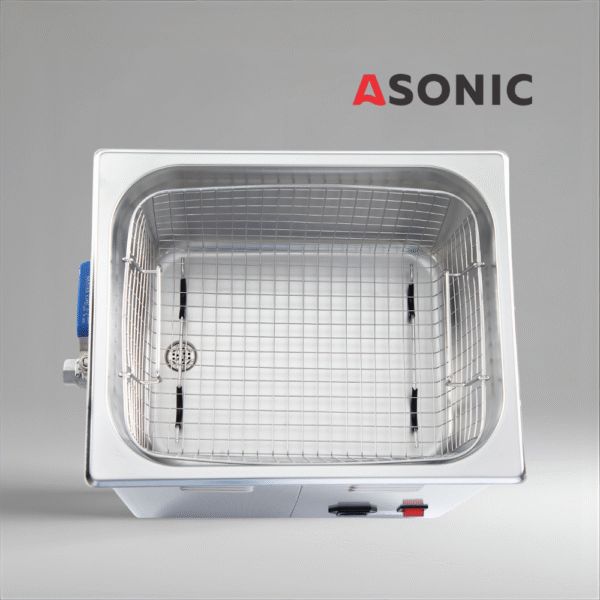

  • Standard basket
  • Stainless steel lid
  • Power cord
  • User guide
Technical Specifications
Specification Value
Ultrasonic power:
240 W
Ultrasonic frequency:
28kHz & 40 kHz
Number of transducers:
4+
Timer (min):
1 – 99 min
Max temperature:
80°C
Heater power:
300 W
Max tank volume:
9
Tank thickness:
1 mm
Basket dimensions (WxDxH):
270x220x110 mm
Tank dimensions (WxDxH):
300x240x150 mm
Unit dimensions (WxDxH):
380x270x335 mm
Package dimensions (WxDxH):
425x340x400 mm
Discharge valve:
YES
Power plug:
Type F, 220V/50Hz
Net. weight:
9 kg
Warranty (year):
2
Max weight for lift
/
Filtration system:
/
Oil Skimmer:
/
Transducer Technical Specification
Specification Value
Power:
60W
Resonant impedance (Ω):
≤15
Capacitance (pF):
±10%: 3500-3900
Frequency:
40 kHz
Weight (g):
231g
Diameter (mm):
45 mm
Height (mm):
54 mm
